1.85 Male to 2.4 Male 50GHz High Frequency Adapter

Specification:

1. DC-50GHz
2. VSWR < 1.15
3. Shell SUS316 stainless steel
4. Corrosion resistance / high and low temperature resistance


Product Detail

Product Tags

1.85 Male to 2.4 Male Adapter Specifications

ITEM SPECIFICATION
 Frequency Range  DC - 50GHz
 VSWR  <1.15
 RF Leakage  < -100 dB
 Temperature Range  -160°C to 180°C

1.85 Male to 2.4 Male Adapter Mechanical Specifications

ITEM SPECIFICATION
 Housing Material  STEEL, CRES ALLOY UNS-30300 PER ASTM A582 PASSIVATED PER ASTM A967-99
 Contact  BeCu UNS-C17300 PER ASTM B196 GOLD PLATE PER MIL-DTL-45204
 Bead  VIRGIN PTFE FLUOROCARBON PER ASTM D1710, TYPE 1 GRADE 1, CLASS B
 Capture Bead  ULTEM 1000 PER ASTM D5205
 Retaining Ring  BeCu UNS C17200 PER ASTM B194 OR ASTM B197
 Gasket  SILICONE RUBBER PER ZZ-R-765

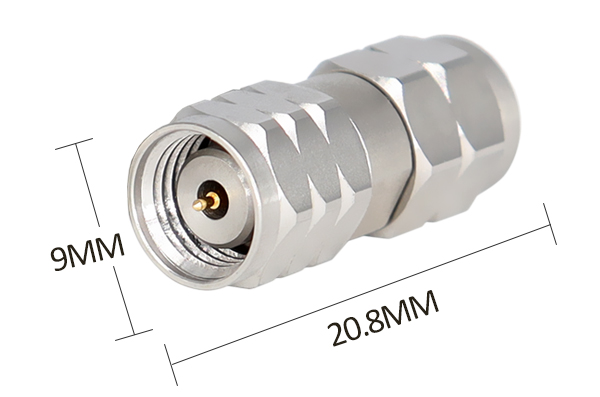

1.85 Male to 2.4 Male Adapter Size

1
