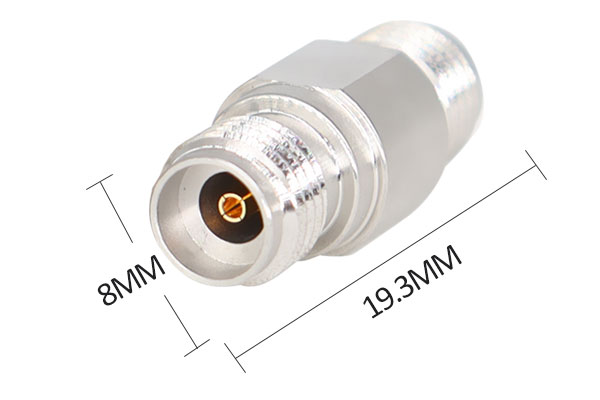

2.92 Female to 3.5 Female 26.5GHz High Frequency Adapter
| ITEM | SPECIFICATION |
| Frequency Range | DC - 26.5GHz |
| VSWR | ＜1.15 |
| RF Leakage | < -100 dB |
| Temperature Range | -160°C to 180°C |
| ITEM | SPECIFICATION |
| Housing Material | STEEL, CRES ALLOY UNS-30300 PER ASTM A582 PASSIVATED PER ASTM A967-99 |
| Contact | BeCu UNS-C17300 PER ASTM B196 GOLD PLATE PER MIL-DTL-45204 |
| Bead | VIRGIN PTFE FLUOROCARBON PER ASTM D1710, TYPE 1 GRADE 1, CLASS B |
| Capture Bead | ULTEM 1000 PER ASTM D5205 |
| Retaining Ring | BeCu UNS C17200 PER ASTM B194 OR ASTM B197 |
| Gasket | SILICONE RUBBER PER ZZ-R-765 |
