2 in 1 Vehicle Truck RV GPS 4G LTE Magnetic Mount Combined Antenna for GPS Navigation Head Unit Car Telematics 4G LTE Mobile moden System
Antenna Performance
|
Item |
Specifications |
|
|
Antenna |
Frequency Range 1 |
1575.42MHz±1.023 MHz |
|
Frequency Range 2 |
698-960/1710-2700MHz |
|
|
Gain |
28dBi/5.3dBi |
|
|
V.S.W.R 1 |
≤1.5 |
|
|
V.S.W.R 2 |
≤3.0 |
|
|
Impendance |
50Ω |
|
|
Antenna size |
42*12mm or customized size |
|
|
Polarization 1 |
RHCP |
|
|
Polarization 2 |
Linear |
|
|
Mechanical |
Inner Material |
Ceramic/copper |
|
Connector type |
SMA/Fakra or customizable |
|
|
Mounting Method |
3M adhesive |
|
|
Environmental |
Operating Temperature |
-40℃~+80℃ |
|
Storage Temperature |
-40℃~+85℃ |
|
|
Environmentally Friendly |
ROHS Compliant |
|

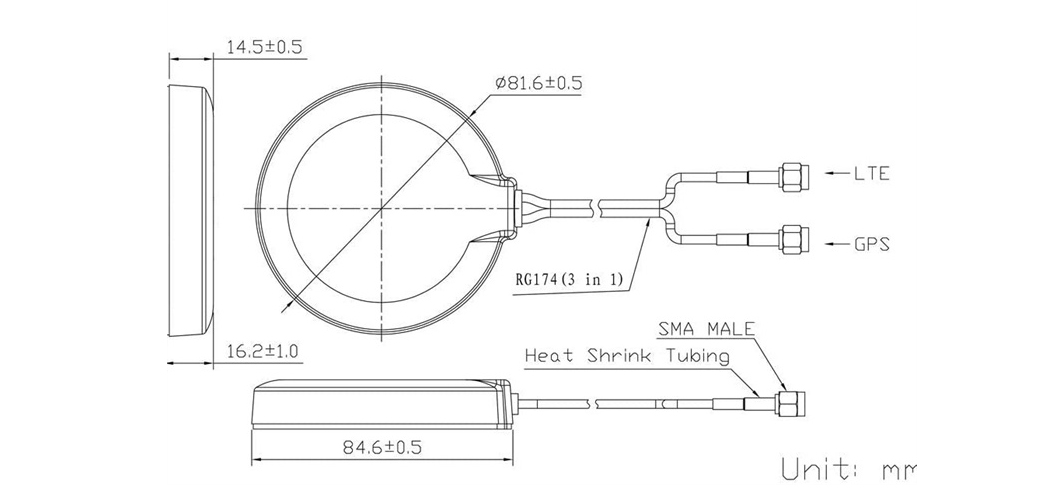

4G LTE + GPS Antenna Drawing

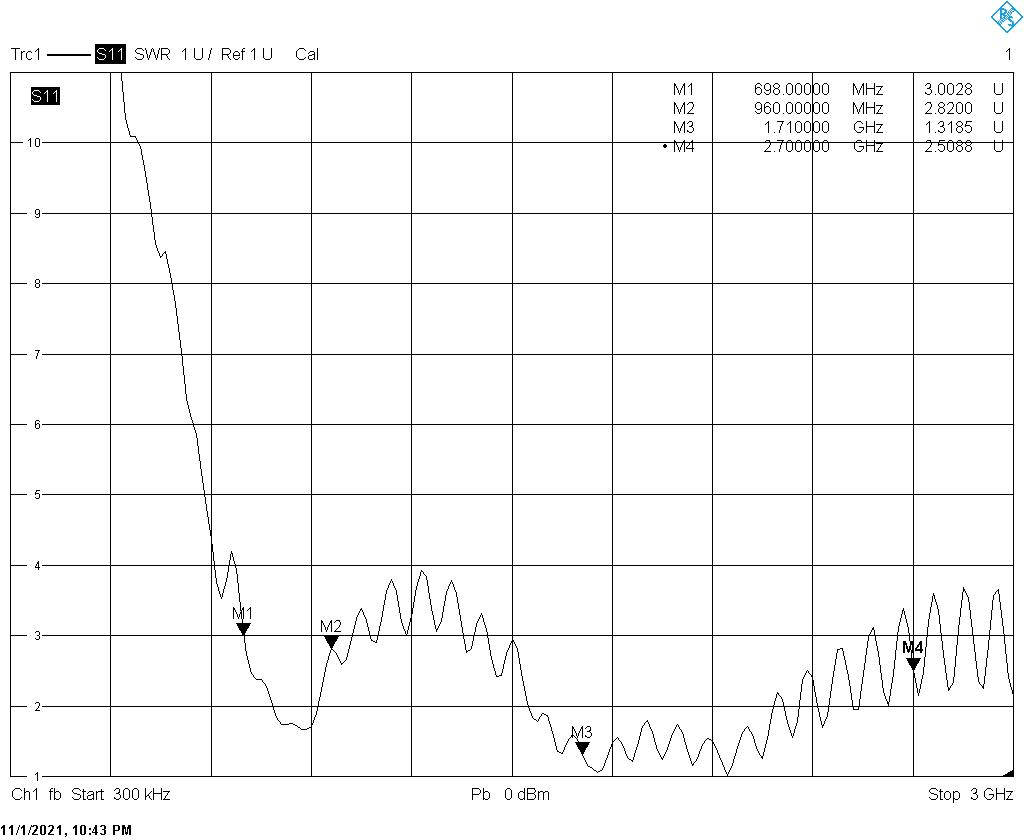

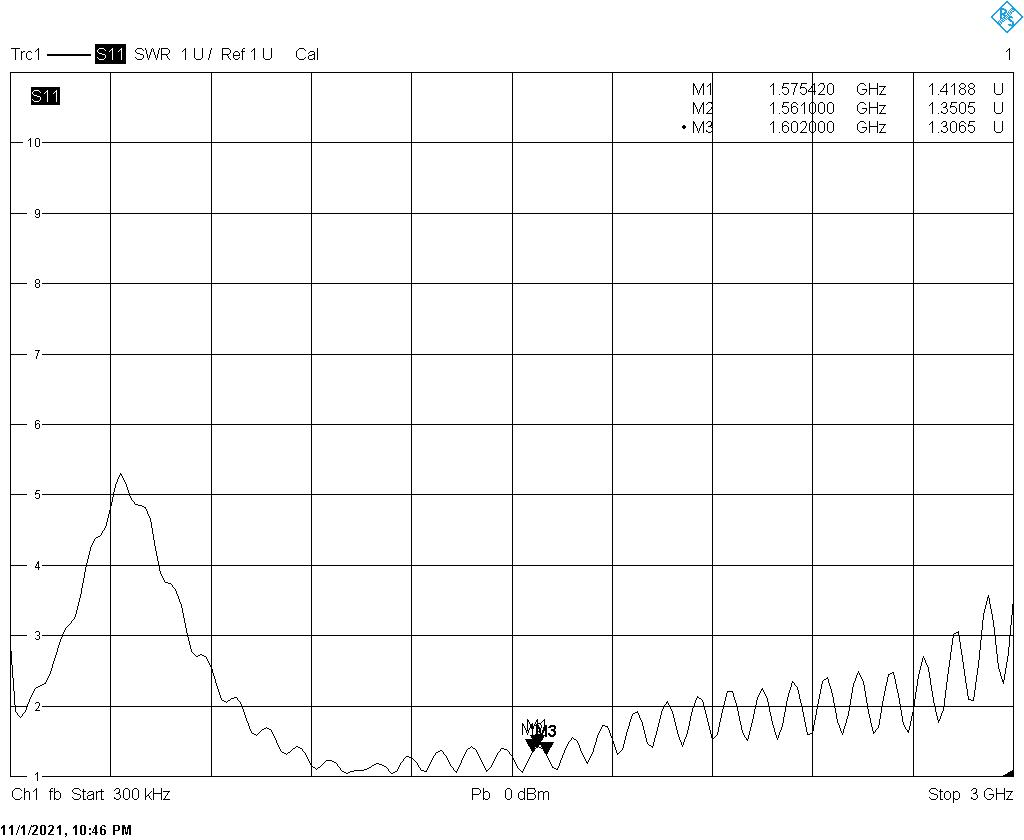

4G GPS Combo Antenna V.S.W.R

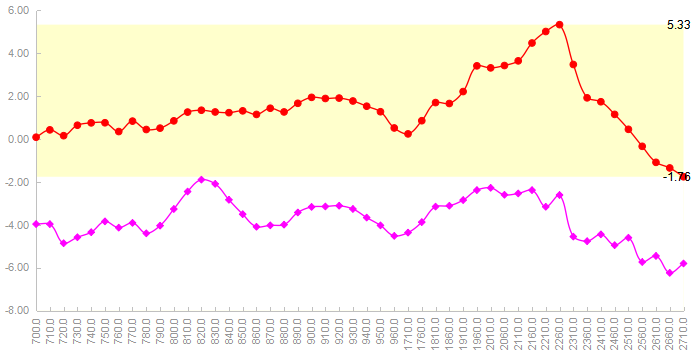

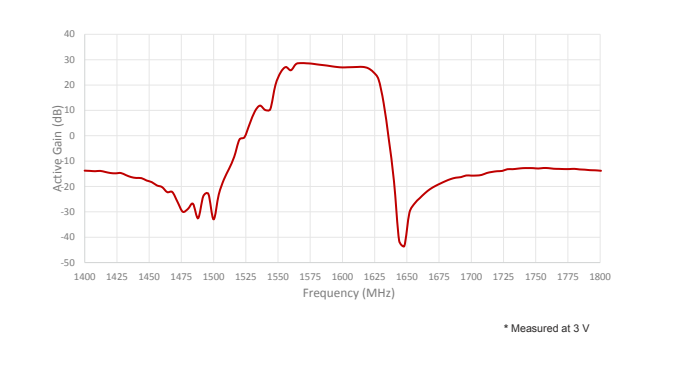

4G GPS Combo Antenna Peak Gain

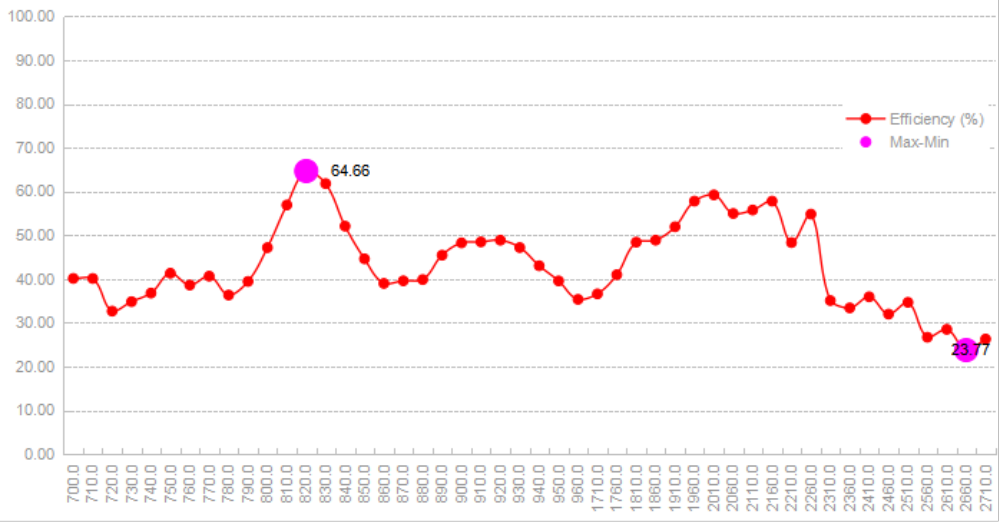

4G GPS Combo Antenna Efficiency

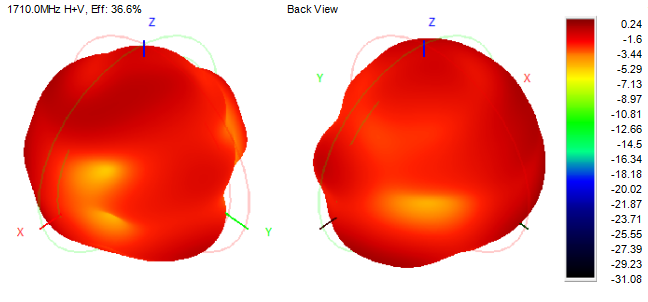

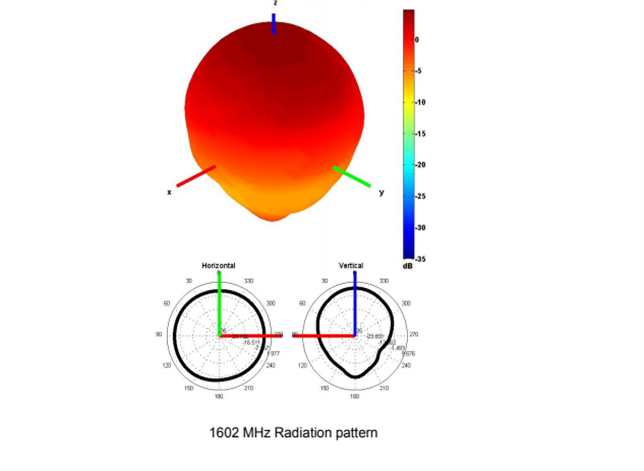

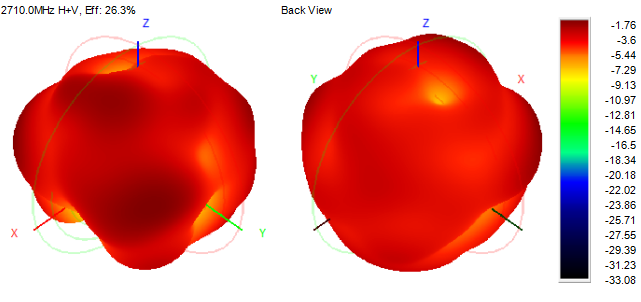

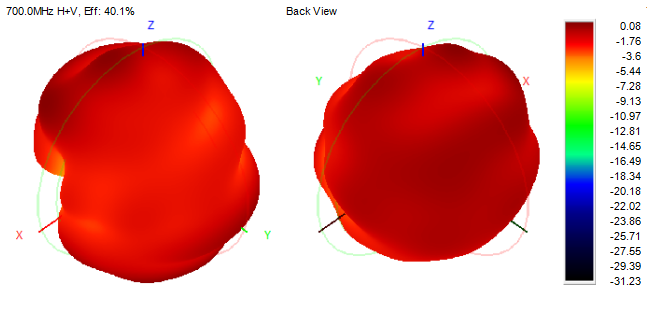

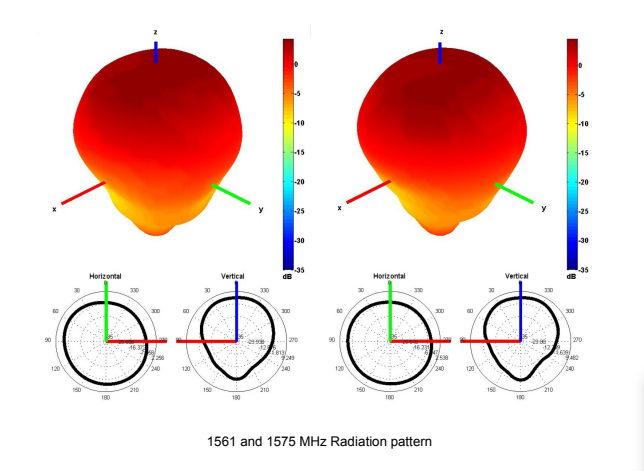

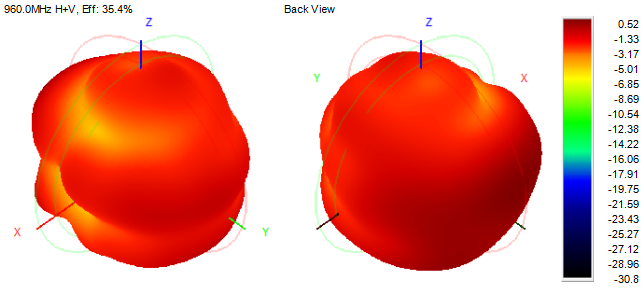

4G GPS Combo Antenna 3D&2D Radiation Patterns
Application Parameters
1.GPS + 4G LTE Magnetic Mount Combined 2 in 1 Antenna for Verizon Network Extender Car Stereo Head Unit GPS Navigation System Module etc.
2.GPS Antenna: Center Frequency: L1:1575.42MHz±1.023 MHz | Band Width：＞9MHz | Gain: 2dBic（Zenith）| V.S.W.R: ＜1.5 | Impendance: 50Ω | Axial Ratio: 3.3dB（max）| LNA Gain: 28±2dB
4.G LTE Antenna Specification: Frequency Range: 698~960/1710~2700MHz | V.S.W.R: ＜3.0 | Polarization: Linear | Gain: 2.0dBi | Impendance: 50Ω
Mechanical:Cable: RG174 3 Meters(10ft) | Connector: SMA Male | Mounting Method: Adhesive/Magnet
5.Never worry about any security problems. We are confident in the quality of our 4G LTE + GPS Antenna and willing to provide 1 MONTHS Replacement Warranty and 100% Satisfaction Guarantee. If you unfortunately get a defective one, please contact our customer support.
FAQ
What's your company MOQ?
Donot has any MOQ for common product, if they are customizable products, we will ask at least 1000-5000pcs, this we can negotiate if you contact us right now.
Can your company accept customize?
Welcome OEM & ODM, the 50MM right angle can custom frequency according to your request, please share us your request details, such as antenna frequency, gain, V.S.W.R, antenna length and mount type, we will advise suitable antenna solution for you.
What's your delivery time?
Products can send out once receive your deposit If we have stock, if they are customizable products, delivery time is around 7-12 working days, if your order is urgent, please let us know, cowin antenna would like to discuss and solve it together with you.
Can you send samples for us to test?
Yes, we can provide free samples if they are our common products, shipping cost will be paid by you, you need to pay samples fee if they are customizable products, high quality and good service are cowin antenna company culture, With cowin antenna your order and money are safe.
