400-6G full frequency coverage, 80% radiation efficiency; 500+different sizes, different shapes, waterproof and explosion-proof internal and external antennas; Customized as needed, free samples in 1-3 days; It has a 300-member system factory and delivers goods in 7 days.

2019 Latest Design Comfast New Arrive E-Sports Desktop WiFi6 Receiver Laptop External High-Speed Dual Band 5400m Wireless Network Card

Specification:
1. 4dBi WIFI6 Peak Gain
2. 82% High Efficiency
3. 136mm Dipole Antenna
4. SMA Hinged Connector
5. Suitable for 2.4/5.0/6.0, WiFi, WiFi 6 and WiFi 6E


Product Detail

Product Tags

We take “customer-friendly, quality-oriented, integrative, innovative” as objectives. “Truth and honesty” is our management ideal for 2019 Latest Design Comfast New Arrive E-Sports Desktop WiFi6 Receiver Laptop External High-Speed Dual Band 5400m Wireless Network Card, Accurate process devices, Advanced Injection Molding Equipment, Equipment assembly line, labs and software advancement are our distinguishing feature.
We take “customer-friendly, quality-oriented, integrative, innovative” as objectives. “Truth and honesty” is our management ideal for China WiFi Adapter and WiFi6e Tri-Band antenna price, We pay high attention to customer service, and cherish every customer. We have now maintained a strong reputation in the industry for many years. We’re honest and work on building a long-term relationship with our customers.

Antenna Performance

Item

Specifications

Antenna

Frequency Range

2.4‐2.5G/ 5.15‐7.125G

Gain

1.93dBi / 4.81dBi

V.S.W.R

≤2.0

Impendance

50Ω

Antenna size

136*19MM or customized size

Polarization

Vertical

Mechanical

Inner Material

PCB

Connector type

SMA/RP-SMA or customizable

Mounting Method

SMA screw

Environmental

Operating Temperature

-40℃~+80℃

Storage Temperature

-40℃~+85℃

Environmentally Friendly

ROHS Compliant

WIFI 6E Antenna Drawing

High Gain 4dBi 2.45.06.0 GHz WiFi 6E ISM Antenna With Hinged Connector Mount (1)

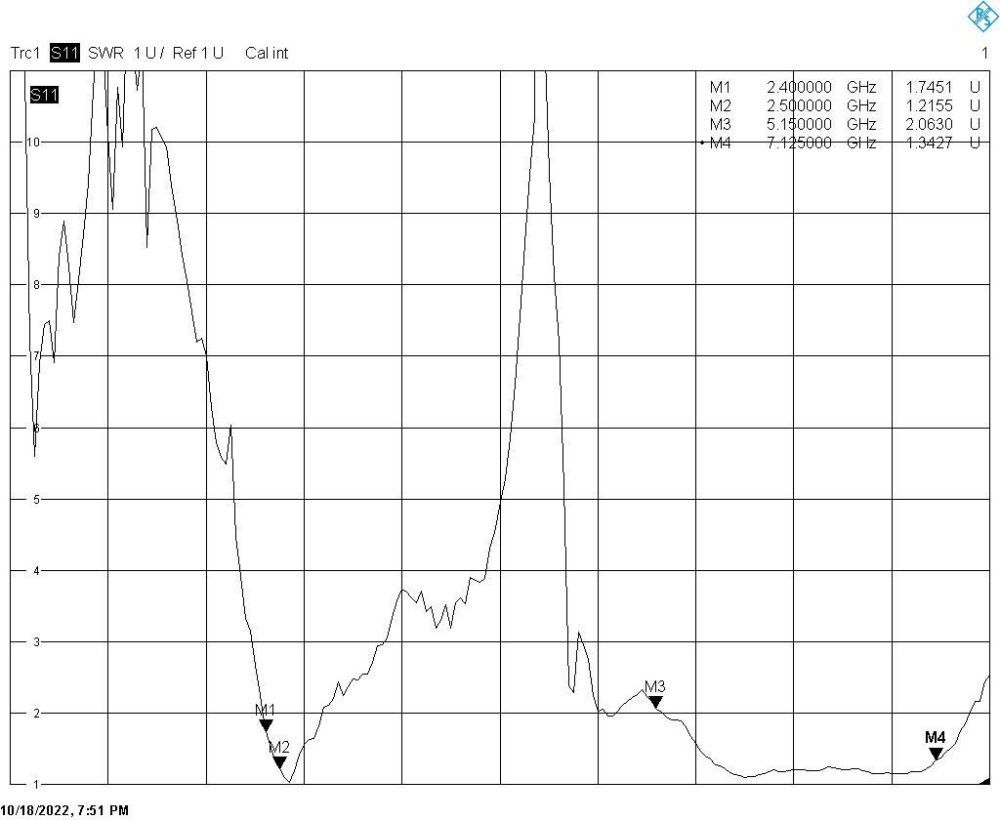

WIFI 6 Antenna V.S.W.R

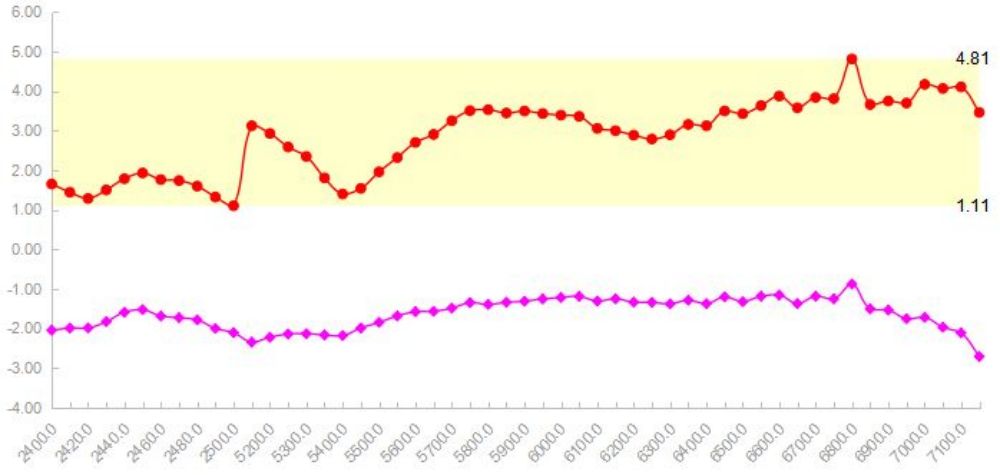

WiFi6 Antenna Peak Gain

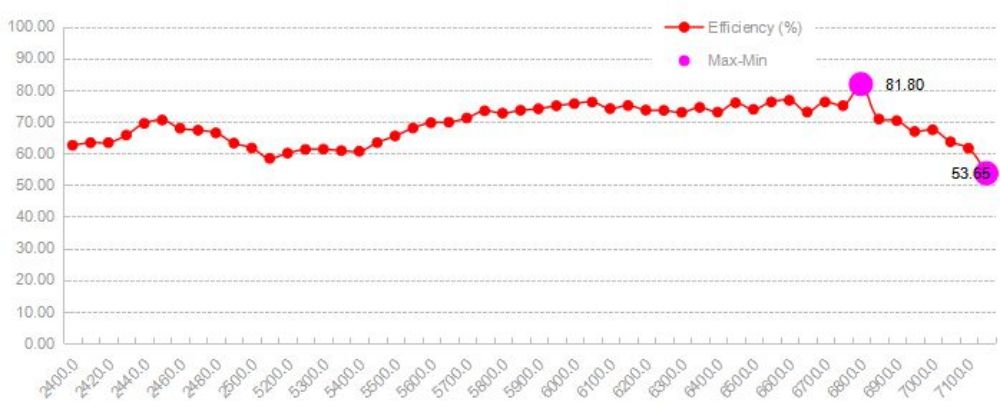

WIFI 6 Antenna Efficiency

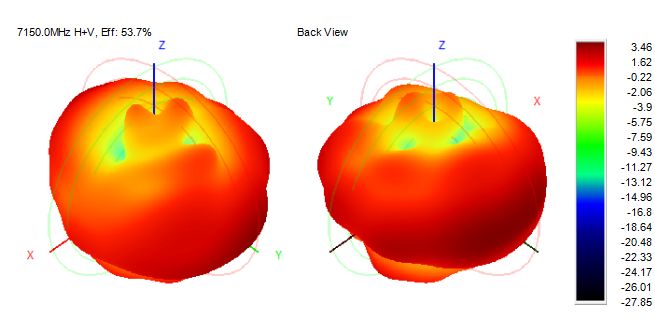

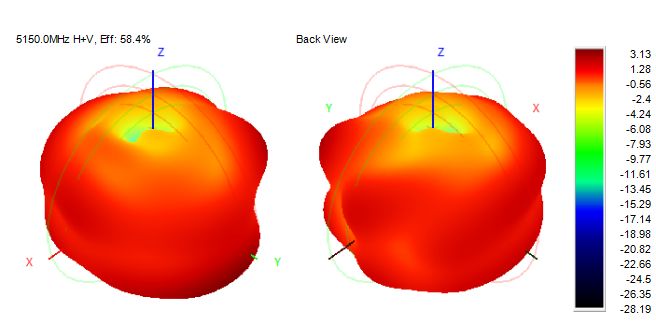

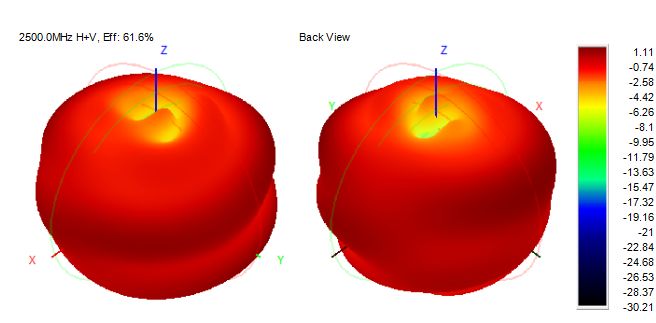

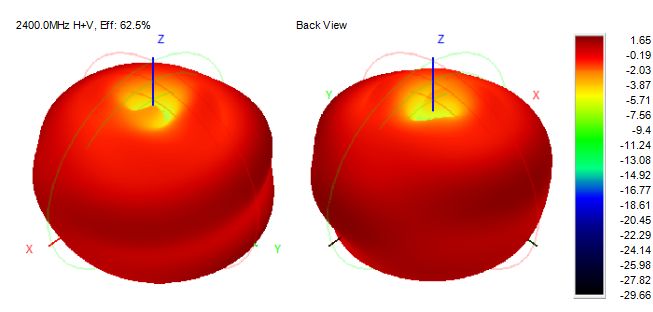

WIFI 6E Antenna 3D&2D Radiation Patterns




Application Parameters

This WIFI6 antenna is breaking into the 6.0 GHz band, suitable for 2.4/5.0/6.0, WiFi, WiFi 6 and WiFi 6E technologies. WiFi 6E offers lower power consumption, higher data rates with peak gigabit speeds, increased capacity with reduced latency that supports higher volume of users and devices, making it ideal for the next-gen commercial and residential wireless applications. This is a substantial improvement for routers, gaming and IoT devices.

The WIFI Antenna dimension is 136 *19mm and comes with a hinged connector mount that allows for position adjustments of 0, 45° and 90° tilt angle plus 360-degree swivel rotation to avoid other objects and optimize to a full omni-directional radiation pattern.This ground plane independent antenna does not require grounding and can be installed vertically or horizontally on any surface without restrictions.

Typical Applications

- IoT devices

- Wireless terminal

- Fleet management

- Routers

- Logistics

- Smart home

- Self-driving cars

- Gateways

- Public transportation

- And others

FAQ

What’s your company MOQ?
Donot has any MOQ for common WIFI 6 antenna, if they are customizable products, we will ask at least 1000-5000pcs, this we can negotiate if you contact us right now.

Can your company accept customize?
Welcome OEM & ODM, the WIFI 6E antenna can custom frequency according to your request, please share us your request details, such as antenna frequency, gain, V.S.W.R, antenna length and mount type, we will advise suitable antenna solution for you.

What’s your delivery time?
Products can send out once receive your deposit If we have stock, if they are customizable products, delivery time is around 7-12 working days, if your order is urgent, please let us know, cowin antenna would like to discuss and solve it together with you.

Can you send samples for us to test?
Yes, we can provide free samples if they are our common products, shipping cost will be paid by you, you need to pay samples fee if they are customizable products, high quality and good service are cowin antenna company culture, With cowin antenna your order and money are safe.
