400-6G full frequency coverage, 80% radiation efficiency; 500+different sizes, different shapes, waterproof and explosion-proof internal and external antennas; Customized as needed, free samples in 1-3 days; It has a 300-member system factory and delivers goods in 7 days.

20*20*4MM GPS BD GLONASS Tri-mode Positioning Navigation Internal Active Antenna

20*20*4MM GPS BD GLONASS Tri-mode Positioning Navigation Internal Active Antenna Featured Image
  • 20*20*4MM GPS BD GLONASS Tri-mode Positioning Navigation Internal Active Antenna
  • 20*20*4MM GPS BD GLONASS Tri-mode Positioning Navigation Internal Active Antenna
  • 20*20*4MM GPS BD GLONASS Tri-mode Positioning Navigation Internal Active Antenna



Specification:

1. Bipolar amplifier + filter
2. Low noise figure, low power consumption
3. 28dBi active gain
4. Voltage range 1.5-5V
5. Selectable frequency/ceramic size


Product Detail

Product Tags

Internal GPS Antenna Specification

Item Specifications
Antenna  Frequency range 1560-1610MHz
Gain 28dBi
V.S.W.R ≤2.0
Impedance 50Ω
Polarization RHCP
Power 10W
Mechanical  Inner structure FR4/Ceramic
External structure N/A
Antenna size 20*20*4MM
Cable type RF1.13 cable
Connector type IPEX or optional
Mounting method Connector mount
Environmental  Operating temperature -40℃~+80℃
Storage temperature  -40℃~+85℃
Environmentally friendly ROHS compliant

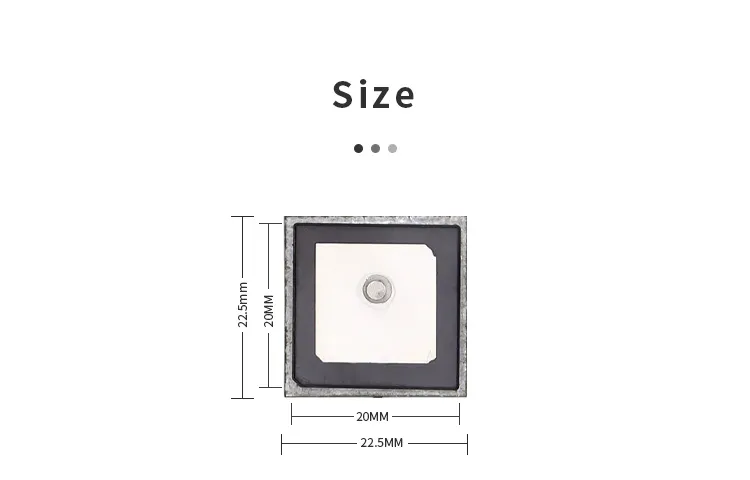

Ceramic GPS Patch Antenna Size

4

Ceramic Active GPS Antenna 3D Radiation Patterns

5
