116*22MM 4G LTE External Waterproof Patch Antenna

Specification:
1. 3.58dBi 4G Peak Gain
2. 116*22MM Patch Antenna
3. Adhesive Mounting LTE
4. Compatible Carrier Network: Verizon, AT&T, T-Mobile, Sprint and etc


Product Detail

Product Tags

Antenna Performance

Item

Specifications

Antenna

Frequency Range

698-960/ 1710-2700MHz

Gain

3.58/2.76dBi

V.S.W.R

≤2/≤3

Impendance

50Ω

Antenna size

116*22MM or customized size

Polarization

Vertical

Mechanical

Inner Material

PCB

Connector type

SMA/RP-SMA or customizable

Mounting Method

SMA screw

Environmental

Operating Temperature

-40℃~+80℃

Storage Temperature

-40℃~+85℃

Environmentally Friendly

ROHS Compliant

4G Patch Antenna Drawing

4G Patch Antenna drawing (1)

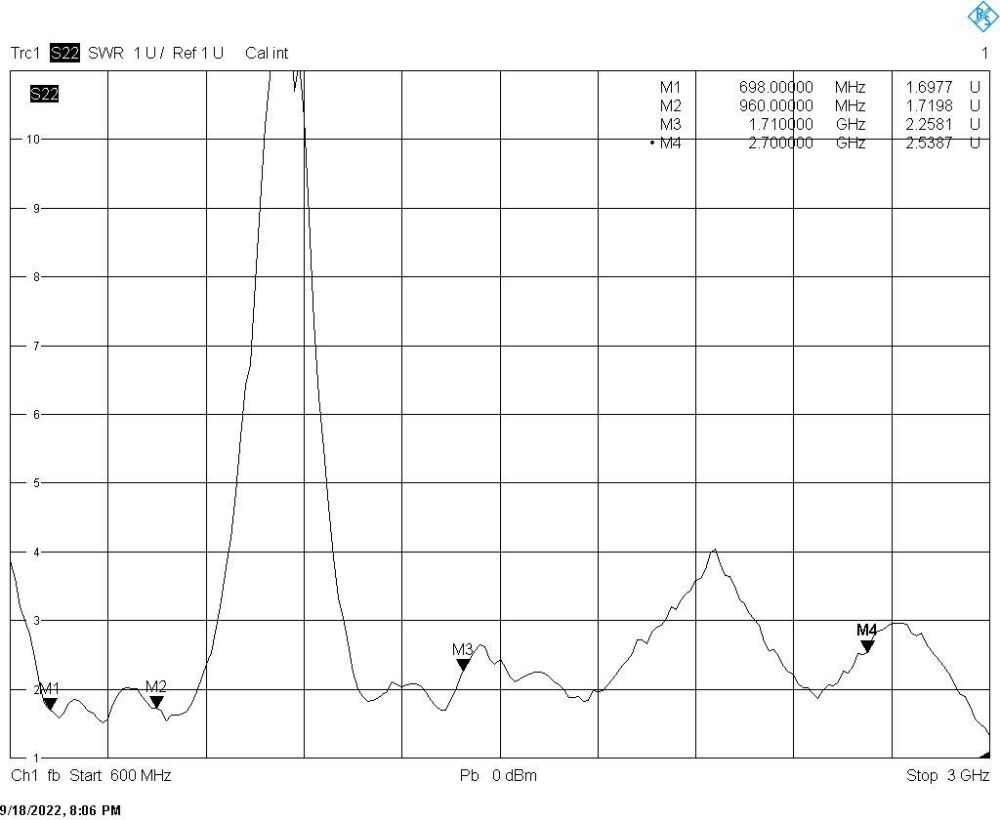

4G Patch Antenna V.S.W.R

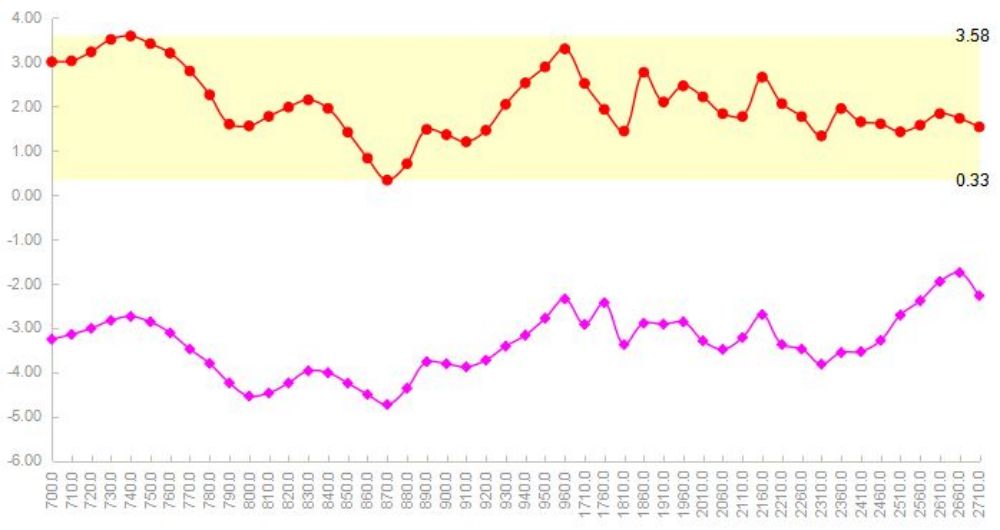

4G Patch Antenna Peak Gain

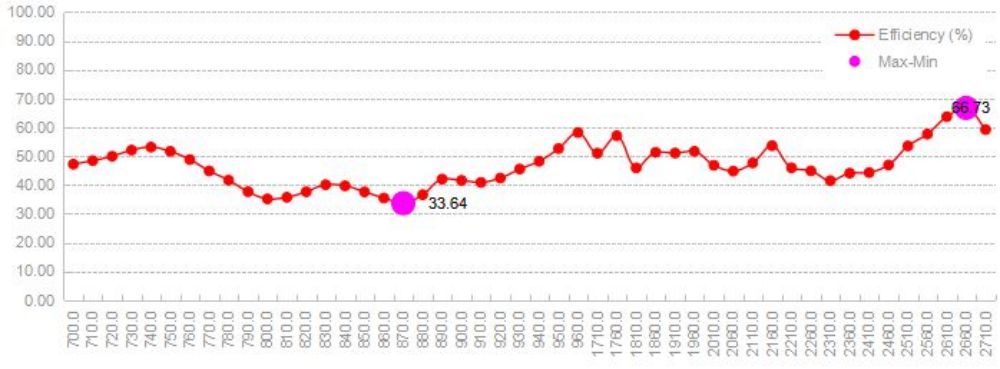

4G Magnetic Antenna Efficiency

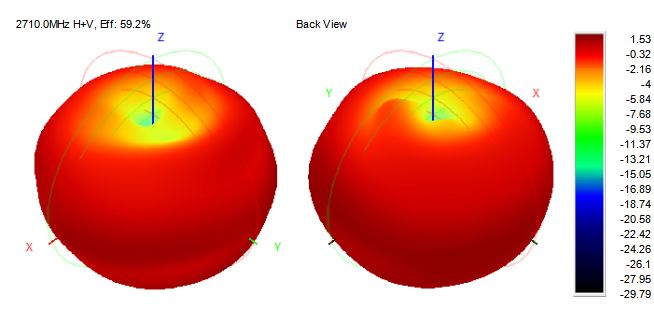

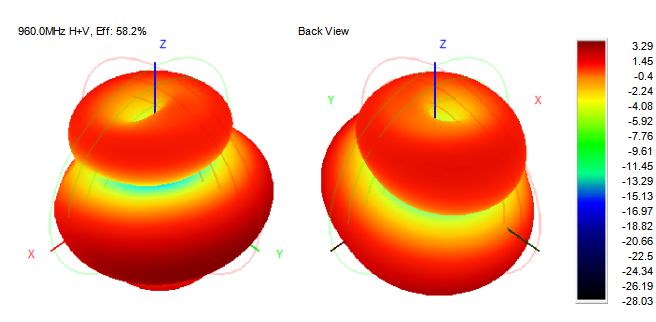

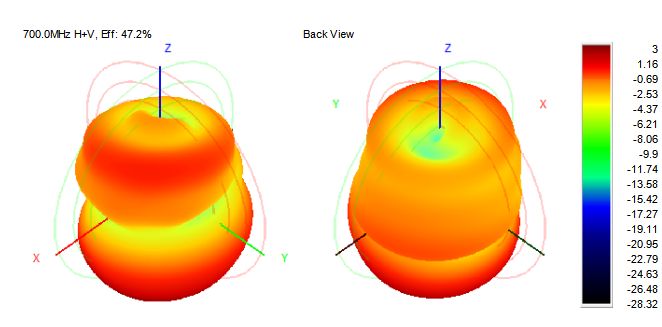

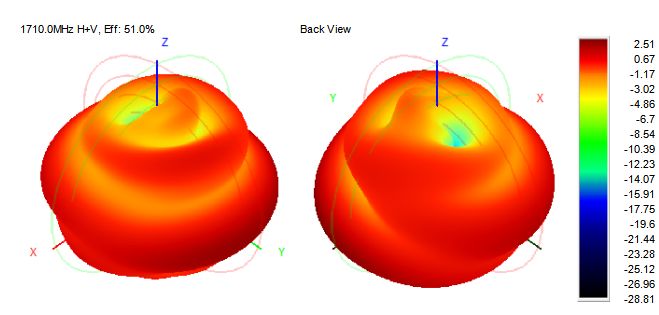

LTE Patch Antenna 3D&2D Radiation Patterns

Application Parameters

The 4g lte patch antenna is 3.58dBi gain, Omni-Directional and adhesive mount that is made from durable material of reinforced plastic, copper wire. It will be a professional, durable accessory, Compatible with 4G LTE Cellular Trail Camera, Game Camera, Wildlife Hunting Camera, Outdoor Security Camera, Celluar Surveillance Camera; For industrial, commercial and Internet Of Things (IOT) applications such as: Hotspots, Kiosks, Vending, Point-of-Sale (POS), Machine-to-Machine (M2M), Video Surveillance (Cameras, DVRs, NVRs), Vehicles, SCADA, Telemetry, PLCs, RTUs, Digital Signage,smart water meter, smart electricity meter, etc.

Typical Applications

- IoT devices

- Wireless terminal

- Fleet management

- Routers

- Logistics

- Smart home

- Self-driving cars

- Gateways

- Public transportation

- And others

FAQ

What's your company MOQ?
Donot has any MOQ for common patch antenna, if they are customizable products, we will ask at least 1000-5000pcs, this we can negotiate if you contact us right now.

Can your company accept customize?
Welcome OEM & ODM, the 4g lte patch antenna can custom frequency according to your request, please share us your request details, such as antenna frequency, gain, V.S.W.R, antenna length and mount type, we will advise suitable antenna solution for you.

What's your delivery time?
Products can send out once receive your deposit If we have stock, if they are customizable products, delivery time is around 7-12 working days, if your order is urgent, please let us know, cowin antenna would like to discuss and solve it together with you.

Can you send samples for us to test?
Yes, we can provide free samples if they are our common products, shipping cost will be paid by you, you need to pay samples fee if they are customizable products, high quality and good service are cowin antenna company culture, With cowin antenna your order and money are safe.
