50MM 4G LTE 3G 2G Wideband Right Angle Smart Antenna 4dBi CAT1 DAS Terminal Antenna
Antenna Performance
|
Item |
Specifications |
|
|
Antenna |
Frequency Range |
824-960/1710-2700MHz |
|
Gain |
3dBi |
|
|
V.S.W.R |
≤2.0 |
|
|
Impendance |
50Ω |
|
|
Antenna size |
50mm or customized size |
|
|
Polarization |
Vertical |
|
|
Mechanical |
Inner Material |
PCB/Copper tube |
|
Connector type |
SMA/RP-SMA or customizable |
|
|
Mounting Method |
SMA screw |
|
|
Environmental |
Operating Temperature |
-40℃~+80℃ |
|
Storage Temperature |
-40℃~+85℃ |
|
|
Environmentally Friendly |
ROHS Compliant |
|

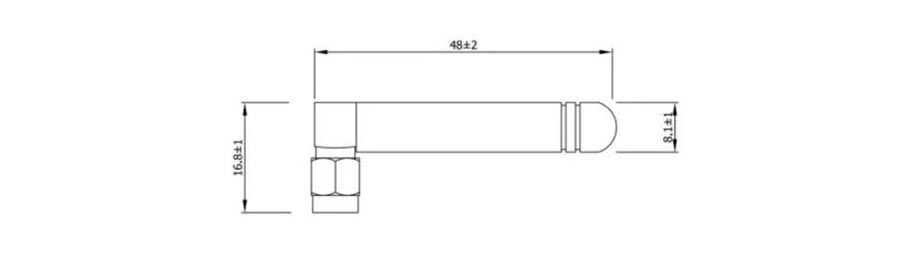

4G LTE Antenna Drawing

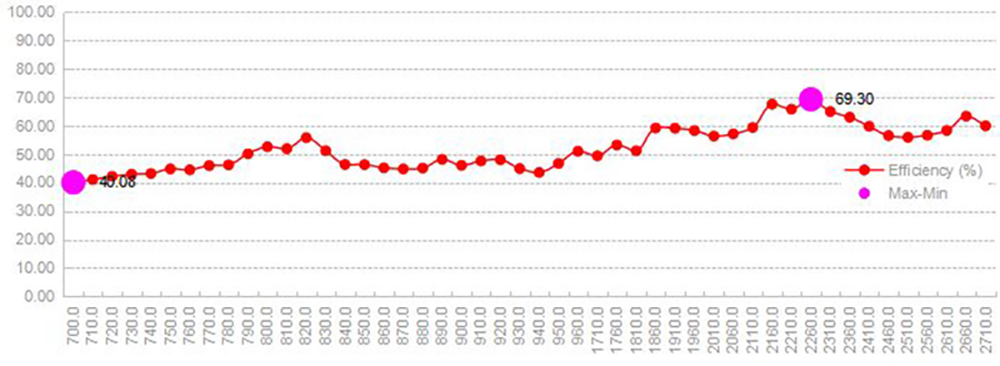

4G LTE Antenna Efficiency

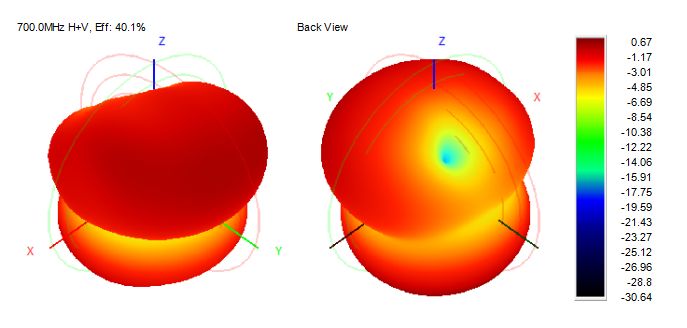

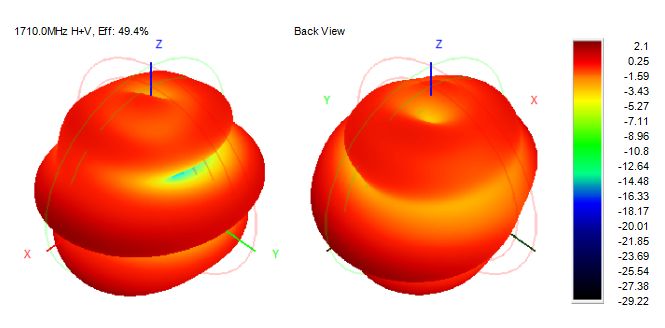

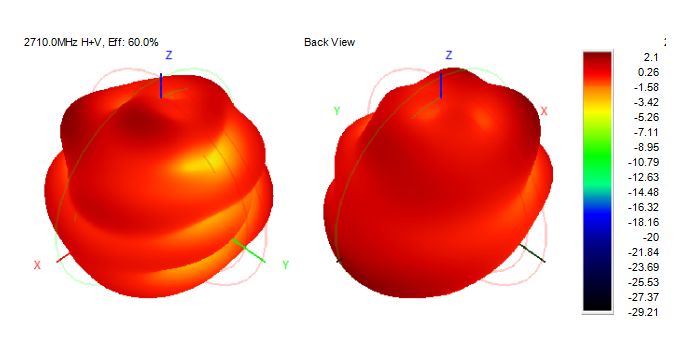

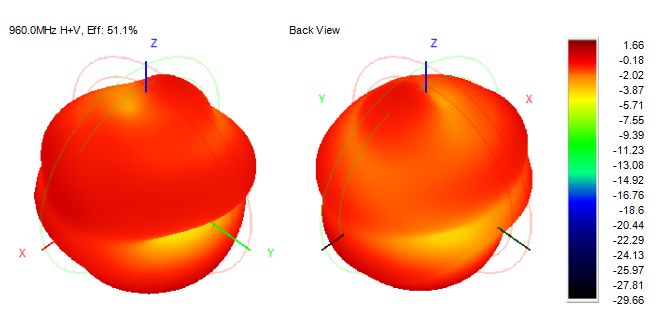

4G LTE Antenna 3D&2D Radiation Patterns
Application Parameters
This antenna was designed to improve signal strength allowing longer range, better signal quality, and reliability while providing increased data throughput. The lte antenna can be used for GSM, CDMA, DCS, PCS, GPRS, WCDMA, UMTS, HSPA, EVDO and LTE (NB-IoT) technologies operating within 4G LTE, 3G, and 2G standards.
Typical Applications
- IOT device
- Smart home
- Wireless terminal
- Self-driving cars
- Fleet management
- Gateways
- Routers
- Public transportation
- Logistics
- And others
FAQ
What's your company MOQ?
Donot has any MOQ for common product, if they are customizable products, we will ask at least 1000-5000pcs, this we can negotiate if you contact us right now.
Can your company accept customize?
Welcome OEM & ODM, the 50MM right angle can custom frequency according to your request, please share us your request details, such as antenna frequency, gain, V.S.W.R, antenna length and mount type, we will advise suitable antenna solution for you.
What's your delivery time?
Products can send out once receive your deposit If we have stock, if they are customizable products, delivery time is around 7-12 working days, if your order is urgent, please let us know, cowin antenna would like to discuss and solve it together with you.
Can you send samples for us to test?
Yes, we can provide free samples if they are our common products, shipping cost will be paid by you, you need to pay samples fee if they are customizable products, high quality and good service are cowin antenna company culture, With cowin antenna your order and money are safe.
