5dBi 4G LTE Signal Booster Router Antenna External Magnetic Base 4G LTE Antenna
Antenna Performance
|
Item |
Specifications |
|
|
Antenna |
Frequency Range |
698-960/1710-2700MHz |
|
Gain |
3.58dBi /4.69dBi |
|
|
V.S.W.R |
≤2.0 |
|
|
Impendance |
50Ω |
|
|
Antenna size |
318*30mm or customized size |
|
|
Polarization |
Vertical |
|
|
Mechanical |
Inner Material |
Copper tube |
|
Connector type |
SMA/RP-SMA or customizable |
|
|
Mounting Method |
SMA screw |
|
|
Environmental |
Operating Temperature |
-40℃~+80℃ |
|
Storage Temperature |
-40℃~+85℃ |
|
|
Environmentally Friendly |
ROHS Compliant |
|

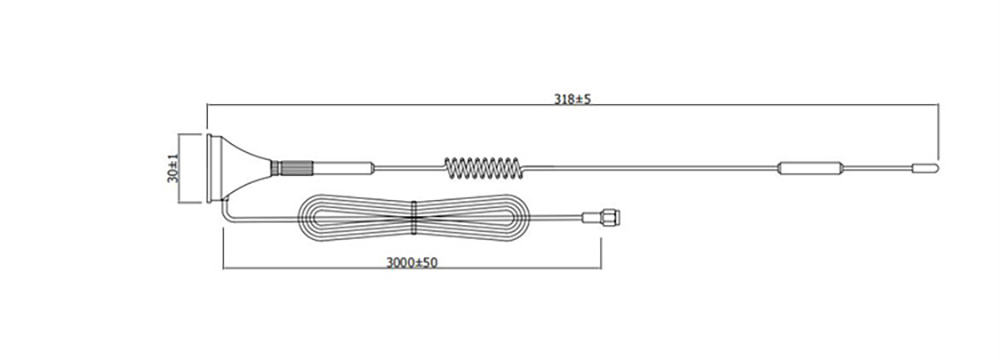

4G Magnetic Antenna Drawing

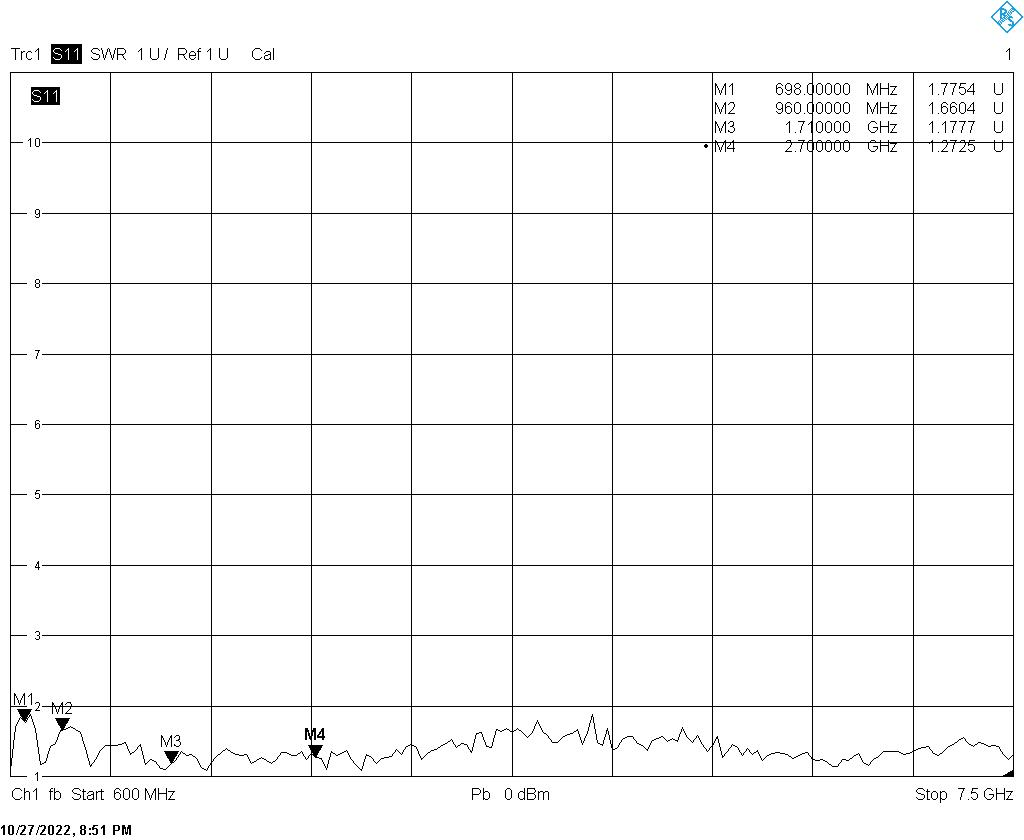

4G Magnetic Antenna V.S.W.R

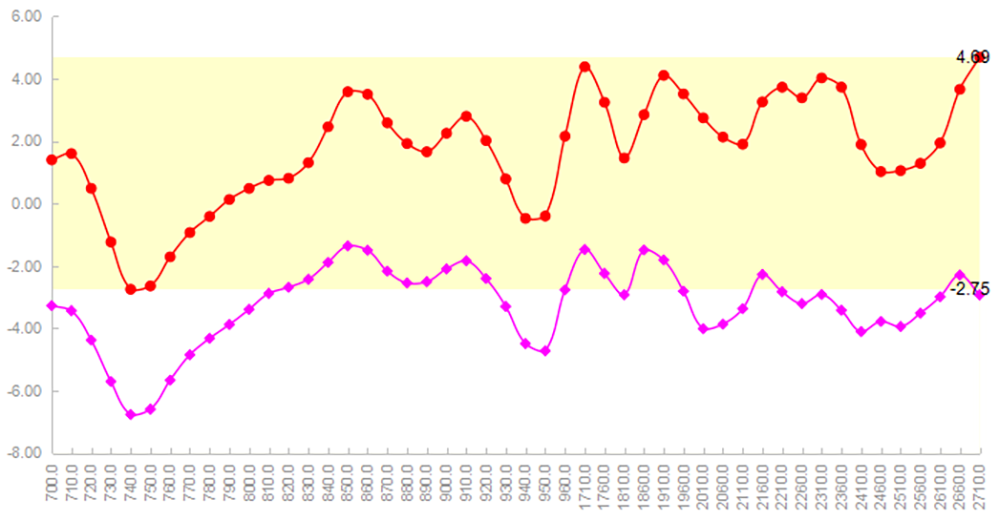

4G Magnetic Antenna Peak Gain

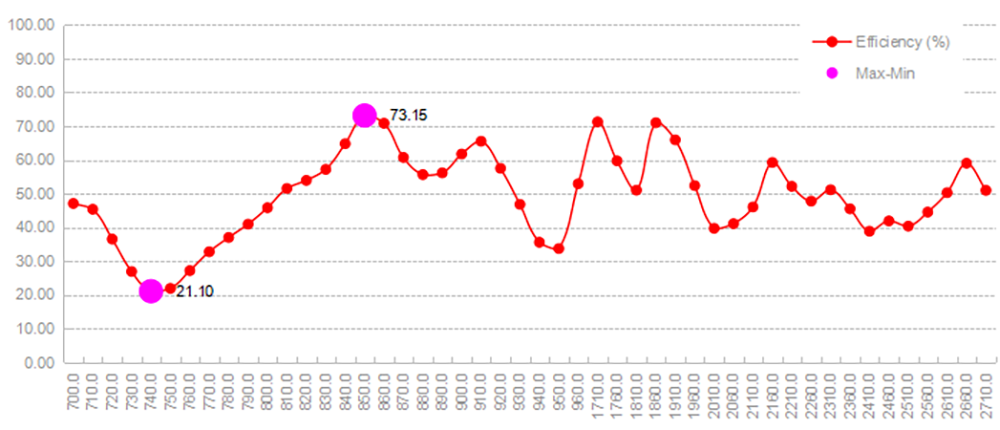

4G Magnetic Antenna Efficiency

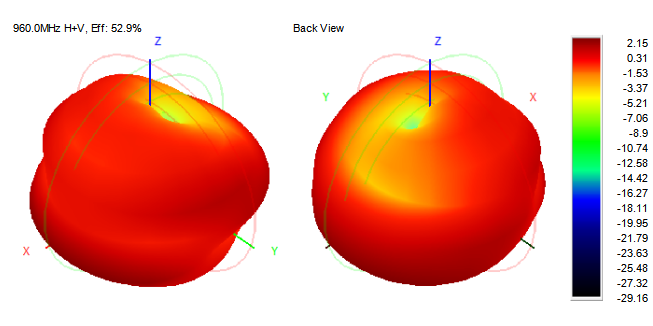

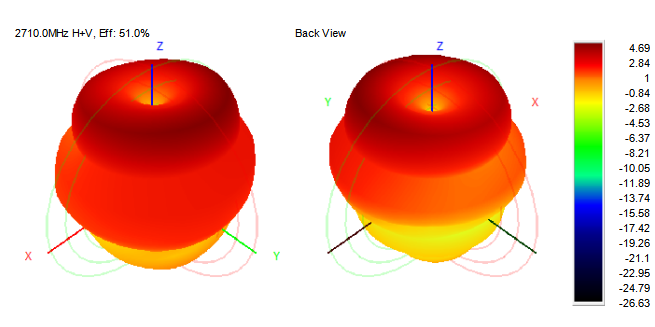

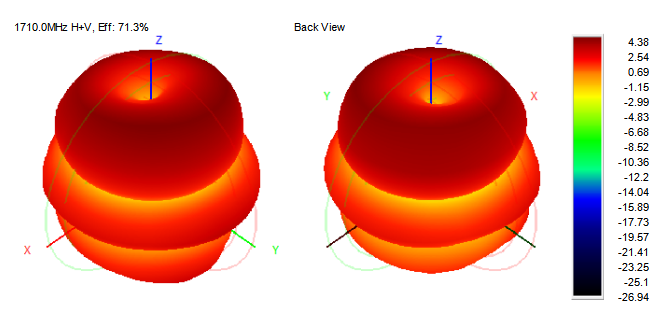

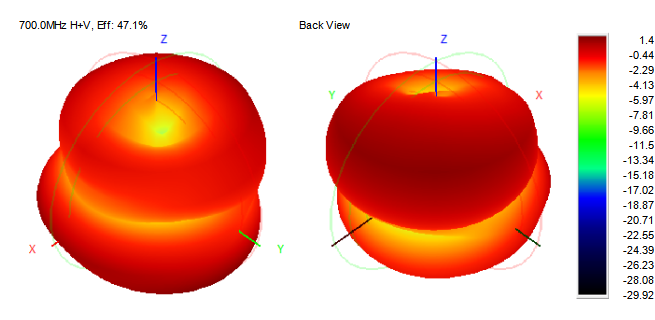

4G Magnetic Antenna 3D&2D Radiation Patterns
Application Parameters
This LTE magnetic antenna was designed to improve signal strength with longer range, better signal quality for 4G LTE Mobile Router, Mobile Broadband Modem Hotspot, CPE Router, Cellular Gateway, Vehicle Car Truck RV Bus Van Mobile Cellular, and use for 4G LTE Cellular Trail Camera, Game Camera, Hunting Camera, Outdoor Security Camera, Celluar Surveillance Camera; Vehicle 4G LTE Tracker, Real Time Monitor, Mobile Vehicle Car DVR MDVR Video Recorder; Industrial 4G LTE Router, Cellular IoT Gateway, 4G LTE M2M RTU DTU Terminal, Cellular Embedded Module, Remote Metering and SMS Alarm, Remote SCADA DAQ Module, Remote Relay Gate Opener Switch, Vending Machine, Digital Signage, Delivery Locker, Cellular Temperature Humidity Sensor Monitoring System, GSM Alarm System, Wireless Security Sensor Motion Detector Alert;
Typical Applications
-Telematic
- Wireless terminal
- Fleet management
- Routers
- Logistics
-Smart home
- Self-driving car
- Gateways
- Public transportation
- And others
FAQ
What's your company MOQ?
Donot has any MOQ for common product, if they are customizable products, we will ask at least 1000-5000pcs, this we can negotiate if you contact us right now.
Can your company accept customize?
Welcome OEM & ODM, the 50MM right angle can custom frequency according to your request, please share us your request details, such as antenna frequency, gain, V.S.W.R, antenna length and mount type, we will advise suitable antenna solution for you.
What's your delivery time?
Products can send out once receive your deposit If we have stock, if they are customizable products, delivery time is around 7-12 working days, if your order is urgent, please let us know, cowin antenna would like to discuss and solve it together with you.
Can you send samples for us to test?
Yes, we can provide free samples if they are our common products, shipping cost will be paid by you, you need to pay samples fee if they are customizable products, high quality and good service are cowin antenna company culture, With cowin antenna your order and money are safe.
