Hot sales 5G Internal Antenna, high Gain 5dBi Internal 5G NR PCB Antenna With IPEX MHF MHF4 Connector
Antenna Performance
|
Item |
Specifications |
|
|
Antenna |
Frequency Range |
617-960/1575-2700/3300-3800/5150-5925MHz |
|
Gain |
4.71dBi |
|
|
V.S.W.R |
≤2.5 |
|
|
Impendance |
50Ω |
|
|
Antenna size |
113*16mm or customized size |
|
|
Polarization |
Vertical |
|
|
Mechanical |
Inner Material |
PCB |
|
Connector type |
IPEX/IPEX MHF4 or customizable |
|
|
Mounting Method |
3M adhesive |
|
|
Environmental |
Operating Temperature |
-40℃~+80℃ |
|
Storage Temperature |
-40℃~+85℃ |
|
|
Environmentally Friendly |
ROHS Compliant |
|

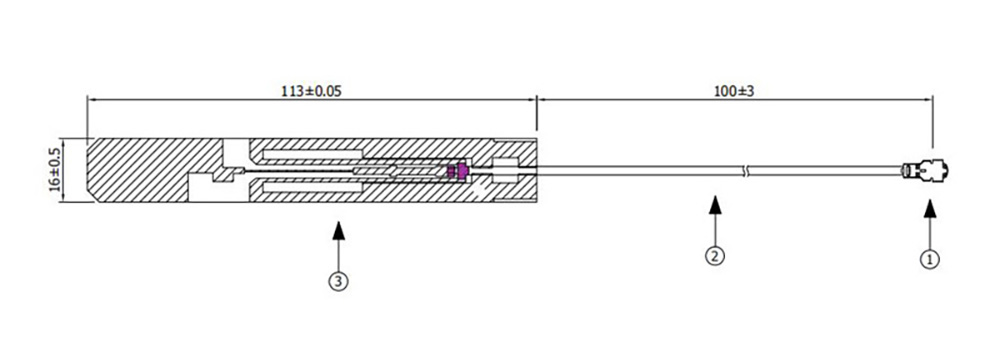

Internal 5G Antenna Drawing

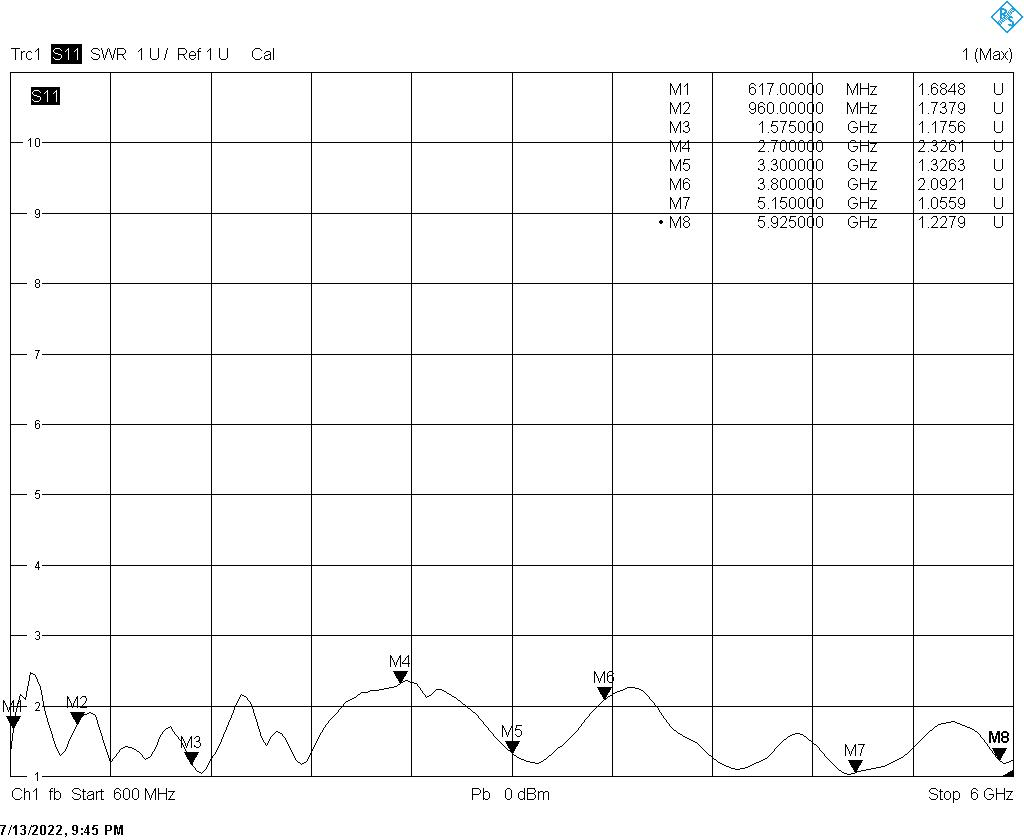

Internal 5G Antenna V.S.W.R

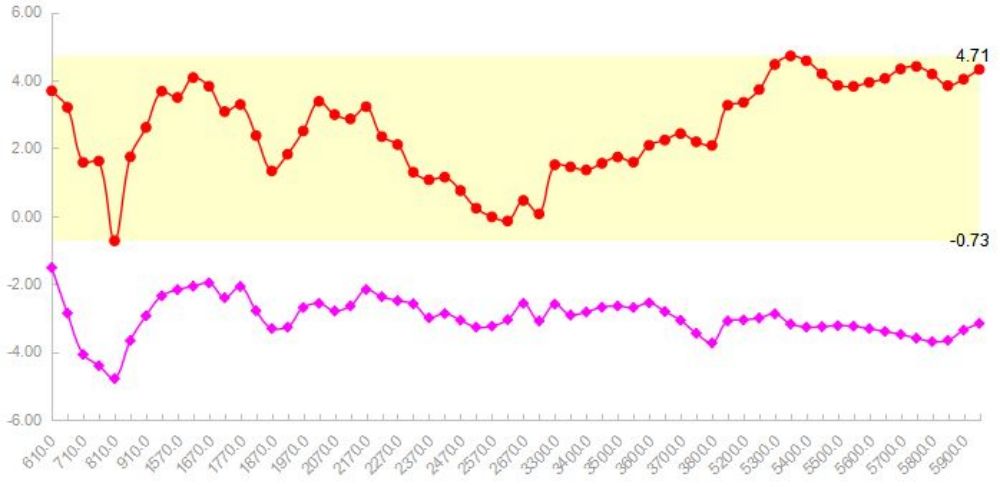

Internal 5G Antenna Peak Gain

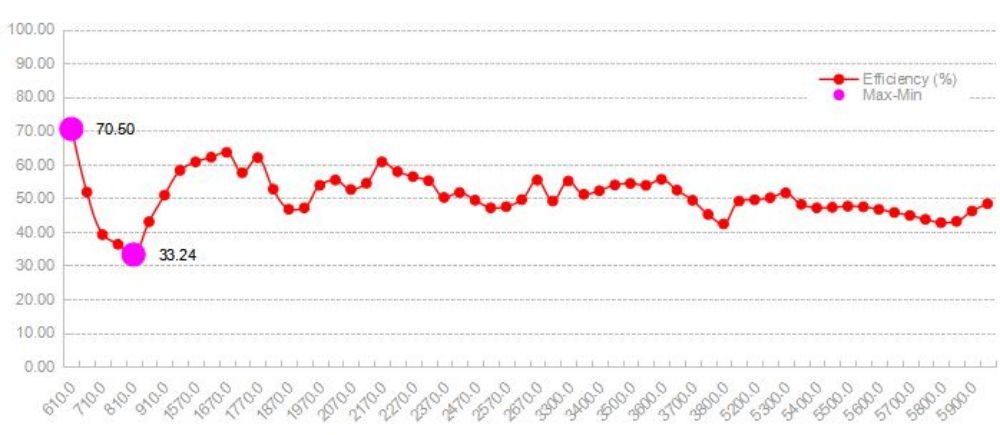

Internal 5G Antenna Efficiency

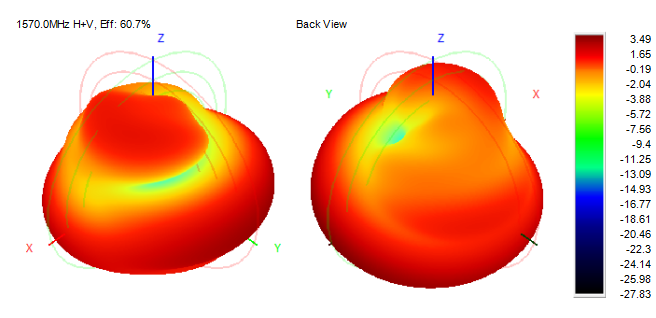

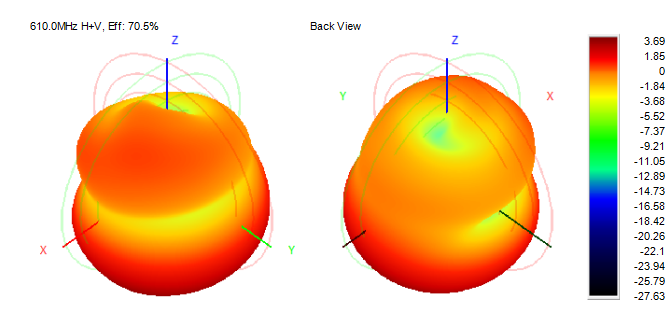

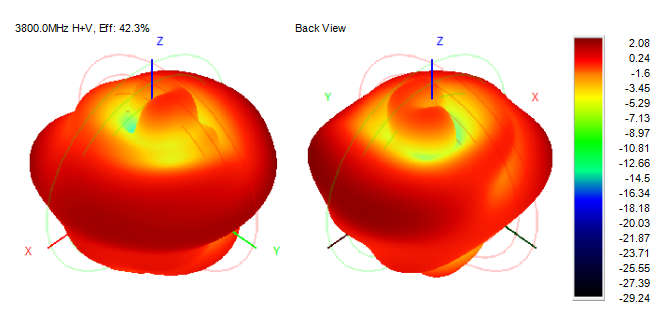

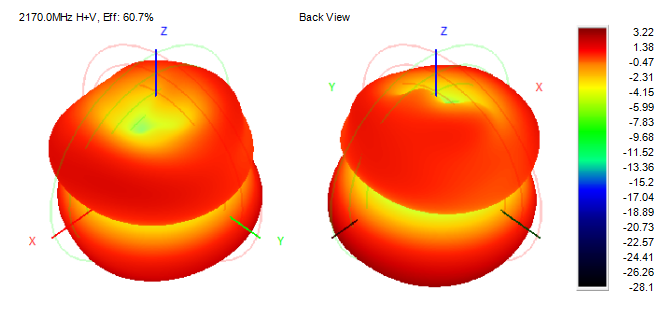

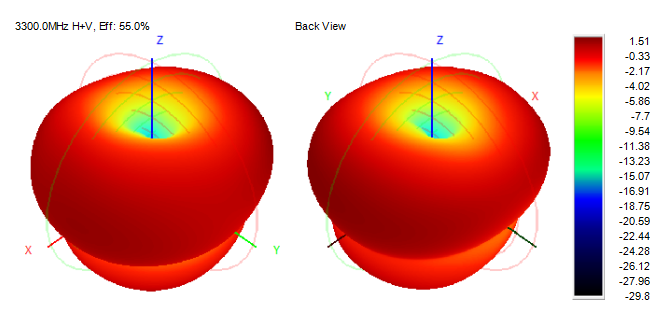

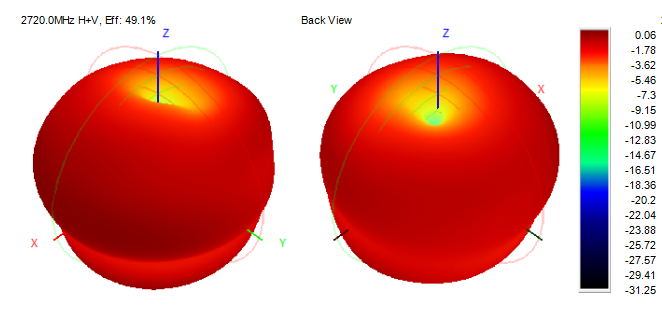

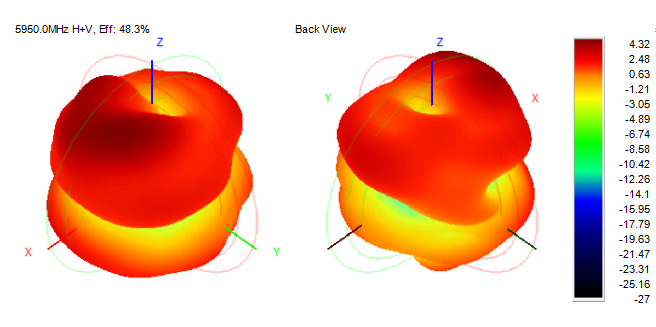

Internal 5G Antenna 3D&2D Radiation Patterns
Application Parameters
The internal 5g antenna has stable performance, good signal, wide range, gets rid of unstable signal, which is safe and simple to use. This wireless antenna with professional internal design, which is small and exquisite, easy to install, to meet your various need. Internal antenna with strong adhesive, which can stick firmly and not easy to fall off, so you can use it with confidence. Adopts IPEX interface, which is anti oxidation, durable, and can be used for multiple plugging and unplugging, Widely used for many situations, such as wireless monitoring, WiFi, smart home, advertising machine, industrial equipment and other fields.
Typical Applications
-Telematic
- Wireless terminal
- Fleet management
- Routers
- Logistics
-Smart home
- Self-driving car
- Gateways
- Public transportation
- And others
FAQ
What's your company MOQ?
Donot has any MOQ for common product, if they are customizable products, we will ask at least 1000-5000pcs, this we can negotiate if you contact us right now.
Can your company accept customize?
Welcome OEM & ODM, the 50MM right angle can custom frequency according to your request, please share us your request details, such as antenna frequency, gain, V.S.W.R, antenna length and mount type, we will advise suitable antenna solution for you.
What's your delivery time?
Products can send out once receive your deposit If we have stock, if they are customizable products, delivery time is around 7-12 working days, if your order is urgent, please let us know, cowin antenna would like to discuss and solve it together with you.
Can you send samples for us to test?
Yes, we can provide free samples if they are our common products, shipping cost will be paid by you, you need to pay samples fee if they are customizable products, high quality and good service are cowin antenna company culture, With cowin antenna your order and money are safe.
