SMA Male to TNCA Male 18GHz High Frequency Adapter

Specification:

1. DC-18GHz
2. VSWR < 1.15
3. Shell SUS316 stainless steel
4. Corrosion resistance / high and low temperature resistance


Product Detail

Product Tags

SMA Male to TNCA Male Adapter Specifications

ITEM SPECIFICATION
 Frequency Range  DC - 18GHz
 VSWR  <1.15
 RF Leakage  < -100 dB
 Temperature Range  -160°C to 180°C

SMA Male to TNCA Male Adapter Mechanical Specifications

ITEM SPECIFICATION
 Housing Material  STEEL, CRES ALLOY UNS-30300 PER ASTM A582 PASSIVATED PER ASTM A967-99
 Contact  BeCu UNS-C17300 PER ASTM B196 GOLD PLATE PER MIL-DTL-45204
 Bead  VIRGIN PTFE FLUOROCARBON PER ASTM D1710, TYPE 1 GRADE 1, CLASS B
 Capture Bead  ULTEM 1000 PER ASTM D5205
 Retaining Ring  BeCu UNS C17200 PER ASTM B194 OR ASTM B197
 Gasket  SILICONE RUBBER PER ZZ-R-765

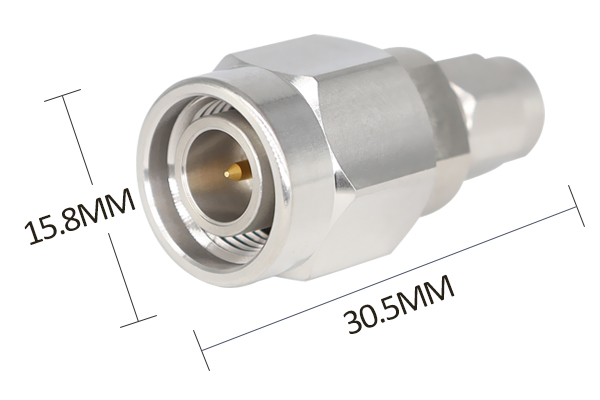

SMA Male to TNCA Male Adapter Size

1
